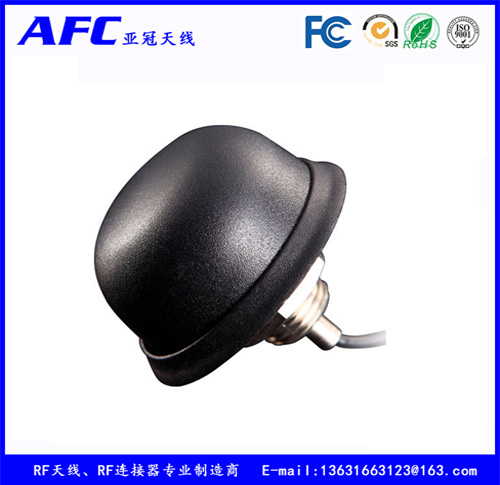

GPS外置天线
| 主要技术参数 | |
| 型 号Model | GPS-YG-005 |
| 频 率Frequency range | 1575.42MHz±3 MHz |
| 驻 波VSWR | ≤1.5 |
| 增 益Gain | 3DBi |
| 放大增益Amplification Gain | 38DBi |
| 极化型式Polarization | Vertical |
| 最大功率Maximum input power | 50W |
| 输入阻抗Impedance | 50Ω |
| 线型Cable type | RG174/RG58U |
| 线长Length | 10M or 15M |
| 接口型式Input Connector | SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX |
| 天线尺寸Dimensions of Antenna | Ø96×126mm |
| 工作温度Working Temp | -40℃~+85℃ |
| 重 量Weight | ＜140(克)gram |
