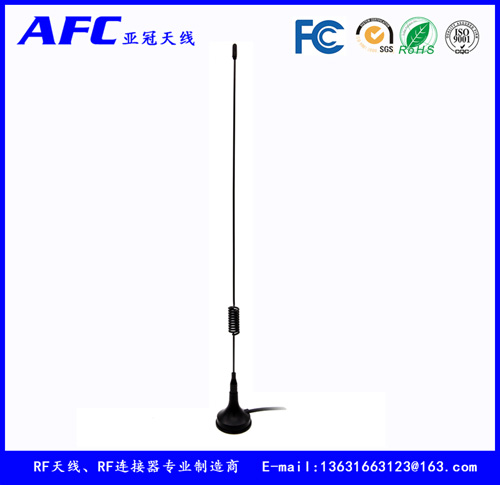

吸盘天线
| 主要技术参数 | |
| 型 号Model | CZ315433-YG-001 |
| 频 率Frequency range | 315MHz/433MHz |
| 驻 波VSWR | ≤1.5 |
| 增 益Gain | 3DBi |
| 极化型式Polarization | 垂直Vertical |
| 最大功率Maximum input power | 50W |
| 输入阻抗Impedance | 50Ω |
| 线型Cable type | RG174 |
| 线长Length | 3 M or 5M |
| 接口型式Input Connector | IEC or F,SMA |
| 天线尺寸Dimensions of Antenna | Φ30×175mm |
| 重 量Weight | 50g |
